High Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post Tensioning

High Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post Tensioning

High Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post Tensioning
High Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post TensioningHigh Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post TensioningHigh Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post TensioningHigh Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post TensioningHigh Quality Lowest Price 7MM Spiral Steel Wire High Tensile Steel Wire for Post Tensioning
CategoriesPc wire
AlbumView larger image
BrandChunpeng
Modelspiral wire
product namespirla prestressed concrete wire
surfacespiral, indented
Tensile strength1470Mpa, 1570Mpa, 1670Mpa, 1770Mpa,1860Mpa
packageroll package
coil weight800-1200kgs
StandardGB/T5223,ASTMA421, EN10138,BS5896,AS4671,ISO 6934
usageprestressed and post-tensioning technology
FOB portxingang
Terms of PaymentL/C
Download DOC
Update Time2017-10-19
Detail Information

                                                    pc wire


The CHUNPENG PC wire product contains 3.8mm to 11.0mm pc wire.



 Pc wire is mainly used for prestressed and posttensioning technology in various shapes of prestressed concrete structures,and widely used for civil engineering construction, such as large scale railroad, highway bridges, building trusses, overhead crane beams, industrial and prefabricated concrete floor, wall board, tubular piles, PC water pipes, TV towers and nuclearpower station, ETC. Active strandards:GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138 or other special required standards.



Product Name

Pc wire

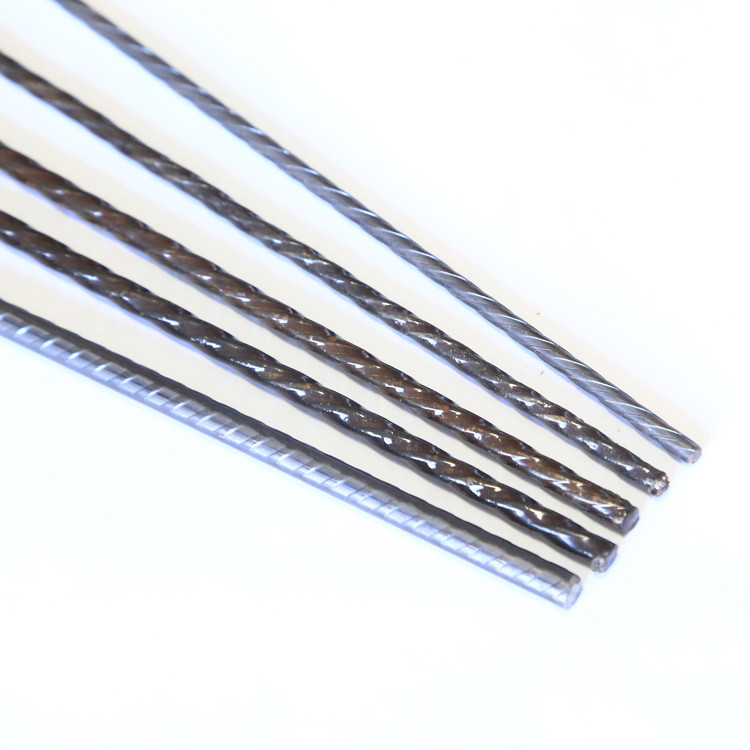

Wire Type

Plain wire

Spiral type , indented

Standard

GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138

Type of Surface

Helix(screw), Plain, indented.

Dia.

4.00mm, 4.80mm, 5.00mm, 6.00mm, 6.25mm, 7.00mm,8mm,9mm,9.4mm,10mm,11mm

Coil weight

1-3 tons

Elongation

3.5%

Tensile Strength

1470Mpa-1860Mpa

Minimum order

10tons

Payment term

TT or LC





  Usage

Low relaxation wire used for prestressed steel structure, prestressed and post-tensioning technology in large, medium and small sizes of various shapes of PC structures,

such as

 civil engineering construction of large scale railroad, highway, etc.









 Dia.

(dn/mm)



 Tolerance   (mm)



 Tensile

Strength  (op0.2/Mpa)     Not less than



 Yield Strength  (op0.2/Mpa)  Not less than



 Elongation at  max  load (Lo=200ogt/%) Not less than





Bending  Times   Not less

than





Bending  Radius  R/mm

Relaxation Properties

The relaxation at 1000h  (Initial load to 70% of  nominal  tensile  strength)  (r/%)  Not more than

4.8

±0.05

1470

1570

1670

1770

1860

1290

1380

1470

1560

1640











3.5





4





15













2.0



5.0

6.0





±0.05

1470

1570

1670

1770

1290

1380

1470

1560



4

   15

6.25

7.0

20

8.0



±0.06

1470

1570

1290

1380

4

20

9.0

25











Dia.

 (dn/mm)



No.of

Helix Rib

Lining Dia.And

Tolerance(mm)

Outline Dia.

And Tolerance

(mm)

Width of

Single Rib(α/mm)

Layer Length

(c/mm)

Nominal cross

section Sn/mm2

Re. Mass

per meter

(g/m)

4.00



 4

3.85±0.05

    4.25±0.05

0.92-1.30

24-30

       12.57

    98.6

4.80

      4

    44.60±0.05

    5.10±0.05

      1.30-1.70

     28-36

       18.09

     142

5.00

      4

    5.30±0.05

    5.30±0.05

      1.30-1.70

     28-36

       19.63

     154

    6.00

      4

    6.30±0.05

    6.30±0.05

      1.60-2.00

     30-38

       28.27

     222

    6.25

      4

    6.70±0.05

    6.70±0.05

      1.60-2.00

     30-40

       30.68

     241

    7.00

      4

    7.46±0.05

    7.46±0.10

      1.80-2.20

     35-45

       38.48

     302

    8.00

      4

    8.45±0.05

    8.45±0.10

      2.0-2.40

     40-50

       50.26

     394

9.00

 4

9.45±0.05

9.45±0.10

2.10-2.70

42-52

63.62

499

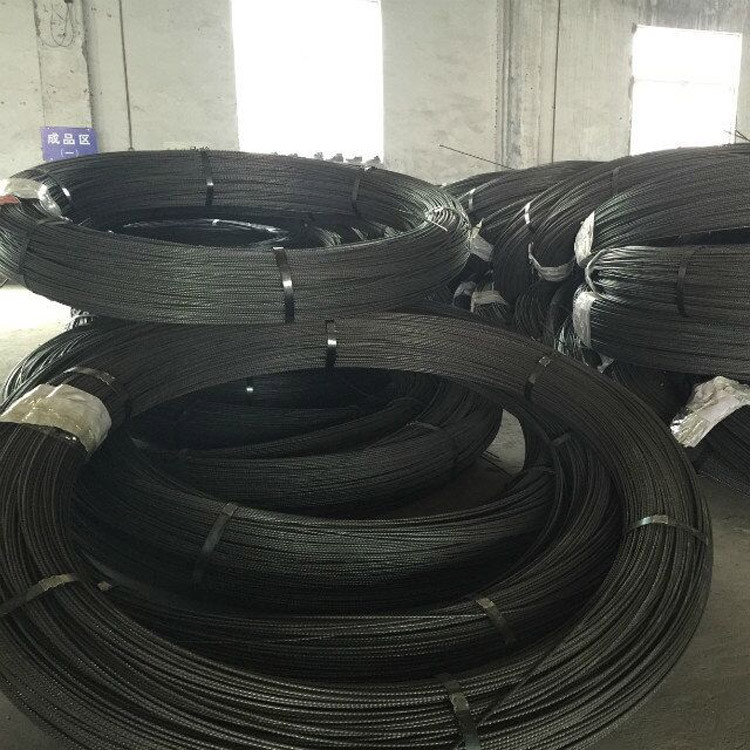

Packaging & Shipping

1.Baling strip, inner PVC film, outer damp-proof paper-plastic compound packing cloth,
2. In container
3. Packed in coil (1Ton -3 Ton)or as your requirement
4. We are responsible for damages of goods resulting from defect of packing and rusty.


Production Flow

 Production Process Flow

10.0MM pc steel wire prestressed concrete wire


Inspection

Both ends of one pc strand coil shall be inspected through stress relaxation test,

tension test, hydraulic universal test, bending test and boroscope test, etc.

 10.0MM pc steel wire prestressed concrete wire



Our products has passed SGS assessment,ISO inspection

10.0MM pc steel wire prestressed concrete wire
