EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRANDEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
CategoriesPc strand
AlbumView larger image
BrandChunpeng
Model1*7
Name of productEN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL
Raw MaterialSWRH77B/SWRH82B
Tensile Strength1860 MPa
Minimum Breaking Load183.7KN
Min. Load at 1% Extension165.3KN
Elongation at Max. Load≥ 3.5%
Tolerance+0.40mm/-0.20mm
Weight of coil2.5-3.5 tons
SurfaceUncoated
InspectionBoth ends of each coil is inspected
FOB portTianjin Port
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T
Download DOC
Update Time2018-12-12
Detail Information
EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND
SGS approved factory 12.7mm pc steel strand for post tension projects
SGS approved factory 12.7mm pc steel strand for post tension projects

Name of product:

EN10138 STANDARD 9.3MM PRESTRESSED CONCRETE STEEL STRAND

Common diameters:

9.3mm, 9.53mm, 11.11mm, 12.7mm & 15.24mm

Standard:

GB/T5224, ASTMA416, BS5896, JISG3536, ISO6934 & EN10138

Inspection:

Both ends of one pc strand coil shall be inspected through stress relaxation test,

tension test, hydraulic universal test, bending test and boroscope test, etc.

Package:

Inner diameter: 760mm

Outer diameter: 1400mm

Width of coil: 760mm

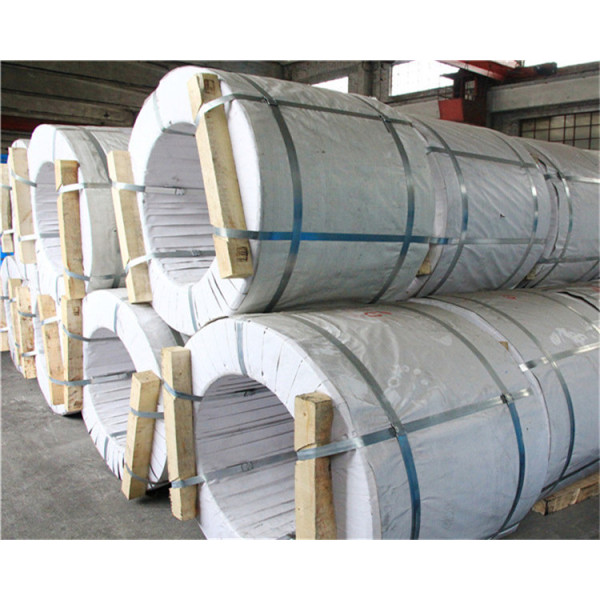

Packaging steps:

(1) Coils are wrapped by 8 steel strips

(2) Wrapped by waterproof cloth

(3) Wrapped by 8 steel strips (6+2)

(4) Added with wood pallet

Delivery:

By container, and the date of delivery shall be determined by sizes

and quantity in the order

Port of Shipment:

Tianjin Port, China

Payment:

T/T or L/C

Samples:

Free samples will be provided to our honored customers.

Application:

Large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.

Production Line

SGS approved factory 12.7mm pc steel strand for post tension projects SGS approved factory 12.7mm pc steel strand for post tension projects

SGS approved factory 12.7mm pc steel strand for post tension projects

Packaging & Shipping

 SGS approved factory 12.7mm pc steel strand for post tension projectsSGS approved factory 12.7mm pc steel strand for post tension projectsSGS approved factory 12.7mm pc steel strand for post tension projectsSGS approved factory 12.7mm pc steel strand for post tension projectsSGS approved factory 12.7mm pc steel strand for post tension projects

Testing

SGS approved factory 12.7mm pc steel strand for post tension projects



Advantage

SGS approved factory 12.7mm pc steel strand for post tension projects

Related Products

SGS approved factory 12.7mm pc steel strand for post tension projects

FAQ

 1. What's your annual output?

We can manufacture 270000 tons PC strand every year.

2. Can you dispatch free PC strand samples?

Yes, we are honored to send PC strand samples to our valued customer like you :)

3. What are the common diameters that you manufacture?

We manufacture 9.53mm/12.7mm/15.24mm PC strand most.
