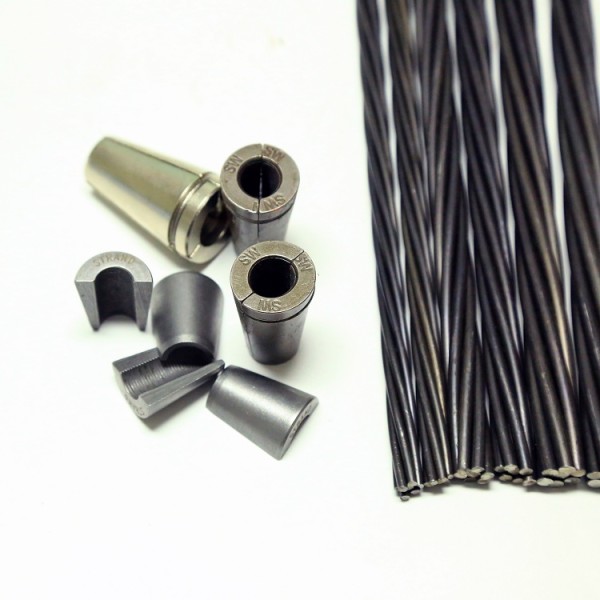

High Quality Strand Concrete Plate Wedge Anchor

High Quality Strand Concrete Plate Wedge Anchor

High Quality Strand Concrete Plate Wedge Anchor
High Quality Strand Concrete Plate Wedge AnchorHigh Quality Strand Concrete Plate Wedge AnchorHigh Quality Strand Concrete Plate Wedge AnchorHigh Quality Strand Concrete Plate Wedge Anchor
Categoriesanchorage
AlbumView larger image
BrandChunpeng
ModelM13/M15
BrandChunpeng
Product typeSingle-hole, Multi-hole; Circular, Flat
anchor plate80*80*12
anchor ring45*45
Wedge2piece or 3piece
Wedge HardnessHRC54-64
ApplicationBridge, railway, highway, building
PartsAnchor Ring/Plate, Wedge, Base Plate etc
ColorSilver,black
payment termsT/T l/c
materialSteel, Steel, 40Cr/C45
OriginTianjin, China
Capacity20-35HRC
Elongation:≥2.0%
Hardnessdge: 50~100
FOB portTianjin Xingang
Terms of PaymentL/C, T/T
Download DOC
Update Time2020-12-03
Detail Information

High Quality Strand Concrete Plate Wedge Anchor







  Anchorage for prestressing work. In post-tensioned concrete, anchorage anchors play a very important role. The effect of pre-stressing depends on the load that the anchors allow, and anchors’ capability decides the security of the post-tensioning.

GYM series of   Post Tension Prestressing Steel Strand Ring Anchorage Prestressing Casting

1.Type: Single-hole, Multi-hole; Circular, Flat



2.Parts: Anchor Ring/Plate, Wedge, Base Plate etc



3. Have a high anchor efficiency and very good performance



4. Easy to use,safe and reliable

GYM series of   Post Tension Prestressing Steel Strand Ring Anchorage Prestressing Casting

1. M15 applies to 15.2/15.24mm, 15.7mm pc strand.



2. M13 applies to 12.7mm, 12.5mm & 12.9mm pc strand.



3. M18 applies to 17.8mm pc strand.



4. M22 applies to 21.6/21.8mm pc strand.



5. M11 applies to 10.8mm pc strand.



6.M10 applies to 9.3mm, 9.53mm pc strand.



7. M7, M6, M5 apply to 7.0mm, 6.0mm, 5.0mm spiral ribbed pc wire






 Production flow

raw material---cutting---lathing---drilling--shaping cone---heat treatment---refined reaming hole---galvniazed---package
