ASTM 15.24MM PC Strand for Viaduct Building

ASTM 15.24MM PC Strand for Viaduct Building

ASTM 15.24MM PC Strand for Viaduct Building
ASTM 15.24MM PC Strand for Viaduct BuildingASTM 15.24MM PC Strand for Viaduct BuildingASTM 15.24MM PC Strand for Viaduct BuildingASTM 15.24MM PC Strand for Viaduct BuildingASTM 15.24MM PC Strand for Viaduct Building
Categoriesprestressed concrete steel strand
AlbumView larger image
BrandChunpeng pc wire and pc strand
Model15.24mm
Tensile strength1460-1860Mpa
Diameter6.5MM-21.8MM
CertificationBV/ISO9001:2000/ SGS
Structure1*3/1*7/1*19
Grade270(1860Mpa)
UsageConstruction Materilals
PackageRoll Packing
StandardASTM A416, BS5896, EN10138
Material77B/82B
Product nameASTM 15.24MM PC Strand for Viaduct Building
FOB portTianjin
Terms of PaymentL/C, D/A, D/P, T/T
Download DOC
Update Time2021-01-20
Detail Information

                                 ASTM 15.24MM PC Strand for Viaduct Building

Sophie  Chen


Email: sophiechen@pcstrand.cc

Tel: 0086-22-65833507

Cellphone:0086138200626419(whatsapp)



1. Item      ASTM 15.24MM PC Strand for Viaduct Building
2. Specification

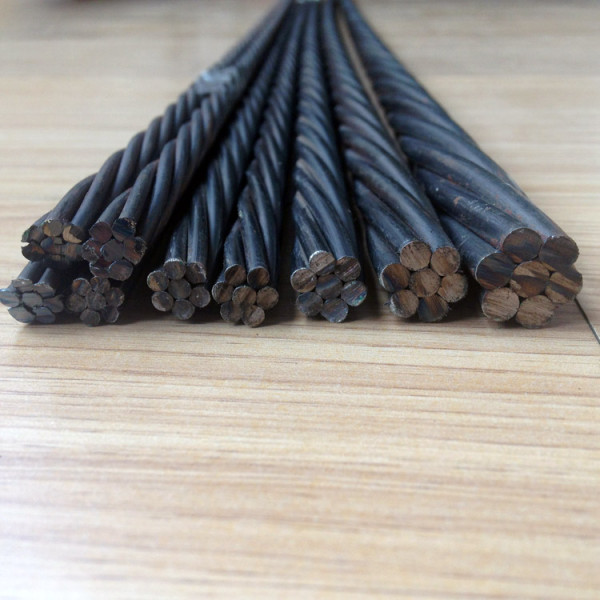

1 x 7 wire, 1x2 wire,1x3 wire,1x19 wire

9.53mm, 12.7mm, 15.2mm, 15.7mm, 17.8mm, 21.8mm

3. AppliacationWidely Used for any aqueduct, viaduct, bridge, tunnel and railway construction
4. CertificateISO9001:2000  SGS BV
5. StandardASTM A416, BS5896, JIS G3536, GB/T5223, EN10138,PREN6138
6. Output500, 000 ton/year
7. FeaturesHigh tensile, low relaxation
8. TwistLeft and right-hand lay
9. Factory Test

Norminal diameter, breaking force, elongation at rupture, tensile strength, stress relaxation

property, relax value at 1000h

10. PackingStandard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet)
11. OriginalTianjin, China
12.  PaymentT/T, LC
13.  Delivery Timein 10 days after we receive your deposit or LC




High Quality !!1*7 12.7mm Prestressed Concrete Strand for Crane Beam


High Quality !!1*7 12.7mm Prestressed Concrete Strand for Crane Beam
High Quality !!1*7 12.7mm Prestressed Concrete Strand for Crane Beam

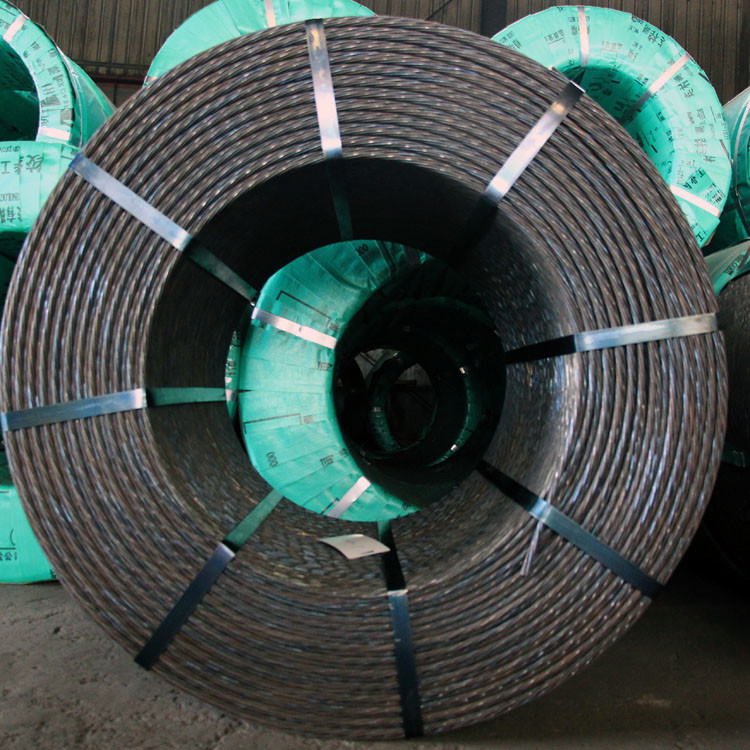

Inner Diameter: 760mm
Outside Diameter:1400mm Max
Coil’s width: 760mm
Coil’s Weight: 2500~3500 kg
We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of the coil has 3 wraps.

There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container.


FAQ

1. How many years have you been in this industry?



We began to manufacture pc strand and pc wire since 1994, as a result, we have 21 years' experience in manufacturing and exporting pc products.



2. What's your acceptable payment term?



T/T & L/C.



3. What is the application of pc strand?



Large-span bridges on railway and highway, stadiums, industrial buildings and coal mines.
