7 wire 15.7mm pc prestressed concrete strand
| Categories | prestressed concrete steel strand |
|---|---|
| Album | View larger image |
| Brand | Chunpeng pc wire and pc strand |
| Model | 7 wire 15.7mm |
| Tensile strength | 1460-1860Mpa |
| Diameter | 6.5MM-21.8MM |
| Certification | BV/ISO9001:2000/ SGS |
| Structure | 1*3/1*7/1*19 |
| Grade | 270(1860Mpa) |
| Usage | Construction Materilals |
| Package | Roll Packing |
| Standard | ASTM A416, BS5896, EN10138 |
| Material | 77B/82B |
| Product name | 7 wire 15.7mm pc prestressed concrete strand |
| FOB port | Tianjin |
| Terms of Payment | L/C, D/A, D/P, T/T |
| Download DOC |  |
| Update Time | 2021-01-19 |
7 wire 12.5mm pc prestressed concrete strand
Sophie Chen
Email: sophiechen@pcstrand.cc
Tel: 0086-22-65833507
Cellphone:0086138200626419（whatsapp)
| 1. Item | 7 wire 12.5mm pc prestressed concrete strand |
| 2. Specification | 1 x 7 wire, 1x2 wire,1x3 wire,1x19 wire 9.53mm, 12.7mm, 15.2mm, 15.7mm, 17.8mm, 21.8mm |
| 3. Appliacation | Widely Used for any aqueduct, viaduct, bridge, tunnel and railway construction |
| 4. Certificate | ISO9001:2000 SGS BV |
| 5. Standard | ASTM A416, BS5896, JIS G3536, GB/T5223, EN10138,PREN6138 |
| 6. Output | 500, 000 ton/year |
| 7. Features | High tensile, low relaxation |
| 8. Twist | Left and right-hand lay |
| 9. Factory Test | Norminal diameter, breaking force, elongation at rupture, tensile strength, stress relaxation property, relax value at 1000h |
| 10. Packing | Standard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet) |
| 11. Original | Tianjin, China |
| 12. Payment | T/T, LC |
| 13. Delivery Time | in 10 days after we receive your deposit or LC |

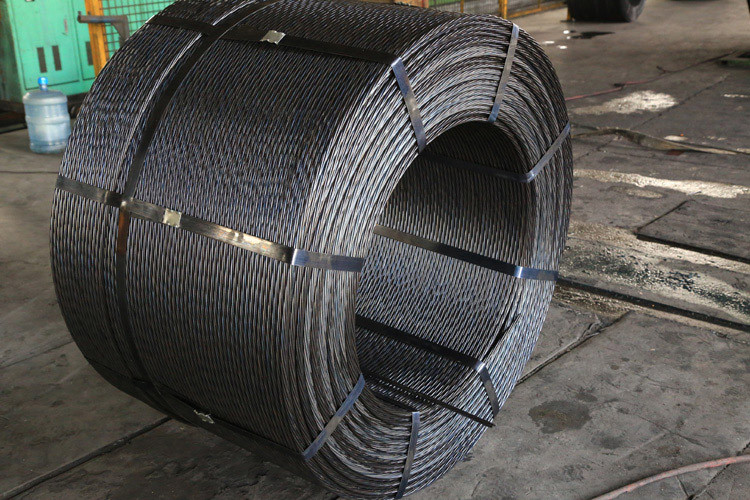

Inner Diameter: 760mm
Outside Diameter:1400mm Max
Coil’s width: 760mm
Coil’s Weight: 2500~3500 kg
We use vapors corrosion inhibiting technology on export anti-rust packing. Out side of the coil has 3 wraps.
There are two wooden pallets on the bottom of the coil. The coil is eye to sky in the container.
FAQ
1. How many years have you been in this industry?
We began to manufacture pc strand and pc wire since 1994, as a result, we have 21 years' experience in manufacturing and exporting pc products.
2. What's your acceptable payment term?
T/T & L/C.
3. What is the application of pc strand?
Large-span bridges on railway and highway, stadiums, industrial buildings and coal mines.
Can I visit you?
Answer:
Sure, If you would like to visit our factory, please contact us to make an appointment.
More details
How can I know how my order is being done?
Answer:
We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
More details
Can you give warranty of your products?
Answer:
3.Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we provided emails with details including pictures or short video to you to confirm the quality before the shipment.
More details
4.How long of your delivery time?
Answer:
Generally need 5-10 days if it is in stock. Or need 15-20 days if it is out of stock.
More details
CHUNPENG
CHUNPENG is a professional manufacturer of pc strand, pc steel wire, unbonded pc strand, retard bonded pc strand, anchorage and post tension ducts in Tianjin, China. Our company was established in 1994 and we specialize in manufacturing the following products:...more>
