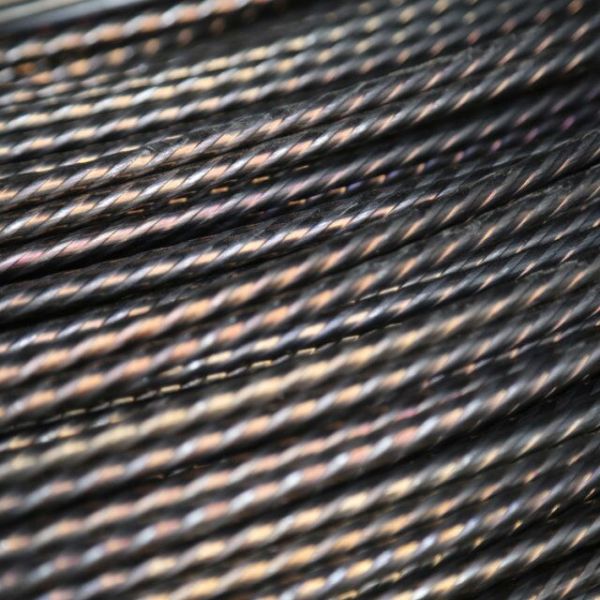

High Tensile Prestressed 5mm PC steel wire for PC Strand
High Tensile Prestressed 5mm PC steel wire for PC Strand
Categories Prestressed Concrete Steel Wire Album View larger image Brand Chunpeng pc wire and pc strand Model 5mm PC steel wire Raw Material SWRH77B/SWRH82B Tensile Strength 1470-1860 MPa Tolerance ±0.05mm Weight of coil 1000 kg ± 200 kg Surface Plain/spiral/indented Elongation No less than 3.5% Bending times No less than 4 times Relaxation No more than 2.5% Email kayyang@pcstrand.cc Whatsapp 008615802244573 FOB port Tianjin Xingang Terms of Payment L/C, D/A, D/P, T/T Download DOC
Update Time 2021-04-17 Detail InformationAs the bigges PC Strand and PC Wire facotry in China, we offer:
1: FACTORY DIRECT PRICE. 2: NICE QUALITY. 3: QUICKEST PRODUCTION TIME WITHIN 7 DAYS. 4: ONLINE PAYMENT. 5: NO MOQ FOR REGULAR SIZE LIKE 12.7MM AND 9.53MM 6: AFTER SALES SERVICES 24/7 7: PC STRAND, PC WIRE, CORRUGATED DUCT, ANCHOR TO BUY IN ONE COMPANY Click for priceProduct
PC Wire
Wire Type
Plain wire, Spiral, indented
Standard
GB/T5223, ASTMA421, BS5896, JISG3536, ISO6934, EN10138
Type of Surface
Helix(screw), Plain, indented.
Dia.
4.00mm, 4.80mm, 5.00mm, 6.00mm, 6.25mm, 7.00mm,8mm,9mm
Coil weight
1-3 tons
Elongation
3.5%
TensileStrength
1470Mpa-1860Mpa
Minimum order
10tons
Specification
High Tensile Low Relaxation Product DescriptionASTM4421 sprial PC steel wire 7mm 16700Mpa
STEEL WIRE ROD DESCRIPTION: Standards: ASTMA421,GB/T5223,BS5896,JIS G 3536,ISO 6934,EN10138 Diameter: 4.8mm - 14mm Raw Material: high carbon steel wire rod SWRH82B AND 77 Prestressing stand B Prestressing stand Tensile Strength: 1470,1570,16701770,1860mpa Coil weight: 2000-3500kgs. Packing: Baling strip+inner PVC film+outer damp-proof paper-plastic compound packing cloth+wooden pallet pedestal. Dia.
(dn/mm)
Tolerance (mm)
Tensile
Strength (op0.2/Mpa) Not less than
Yield Strength (op0.2/Mpa) Not less than
Elongation at max load
(Lo=200ogt/%) Not less than
Bending Times Not less
than
Bending Radius R/mm
Relaxation Properties
The relaxation at 1000h (Initial load to 70% of nominal tensile strength) (r/%) Not more than
4.8
±0.05
1470
1570
1670
1770
1860
1290
1380
1470
1560
1640
3.5
4
15
2.0
5.0
6.0
±0.05
1470
1570
1670
1770
1290
1380
1470
1560
4
15
6.25
7.0
20
8.0
±0.06
1470
1570
1290
1380
4
20
9.0
25
Why Choose Uskindly reminder :
all our certifications are REAL ONE.NOT FAKE , NOT FAKE , NOT FAKE !!!PLEASE CLIKE HERE TO CONTACT US TO SHOW YOU!!!WE HAVE CERTIFICATION FOR :1: ISO for factory2: SGS for both factory and production line3: SGS quality certificate for 12.7mm pc strand4: SGS quality certificate for pc wireProduction ProcessQuality Control1) Raw material control
As the strategic partner and big customer of China's biggest steel company, Capital Steel Group, we have stable suppliers and high quality raw materials.
2) ISO9001: 2000 certificate
All of our equipments, production flow, and quality control system have passed ISO9001: 2000 certificate since 1997.
3) Strict product test
Both ends of one pc wire shall be inspected through tensile strength test , bending test.
Company InformationCompany Name Tianjin Chunpeng Prestressed Concrere Strand Co., ltd Products PC Strand, PC Steel Wire, Unbonded PC Strand, Corrugated duct Location Tianjin China Established Year 1994 Registered Capital USD16 Million Production Line 11 production lines, and 13 wire drawing matchines Production Capacity PC Strand 260,000 ton
PC Wire 40,000 ton
Unbonded PC Strand 40,000 ton
Quality Control 3 Test Laboratories and 16 Quality Controller Website www.pcstrand.cc
www.pcstrand.cn
Certificate DCL and ACRS Certificates for PC Strand
ISO and SGS Certificates for Factory
Samples Welcome to visit our facotry! Samples available for your advance quality test. Contact Information Kay
Whatsapp: 008615802244573
