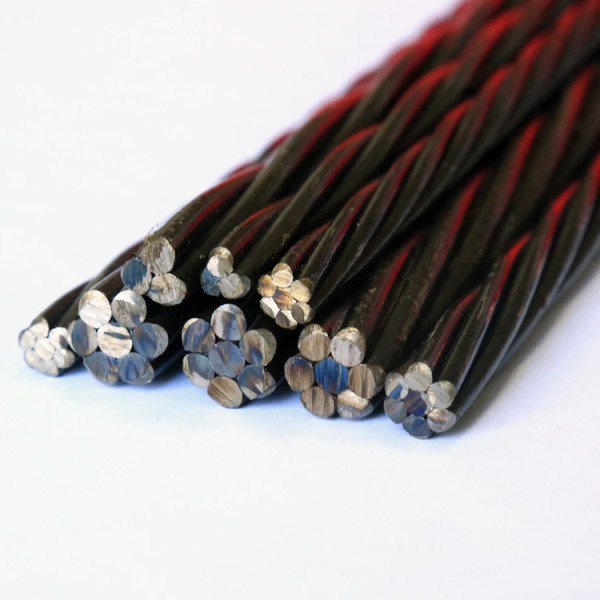

Prestressed Concrete 7 Wire Bonded Strand Dia 9.53mm 1860Mpa

Categories	Prestressed Concrete Steel Strand
Brand	Chunpeng PC Wire and PC Strand
Model	6.5mm, 9.3mm, 9.53mm, 12.7mm, 15.24mm
Grade	82B, 270(1860Mpa)
Standard	ASTMA416/EN10138
Model Number	17,13
Brand Name	EXA
Tolerance	±1%, +0.40mm/-0.20mm
Tensile strength	1370-2160MPA
Coil weight	2.5-3.5tons
Standard	ASTMA416
Type	Drawn Wire
Certificate	ISO9001
Application	Bridge, railway, highway, building
Packing	Roll Packing
MOQ	25ton
Processing Service	Bending, Welding
Origin	China
Download DOC
Update Time	2021-09-20

Contact Now

Detail Information

astm a416 grade 270 12.7mm low relaxation prestressed steel strands

1.Types: Bonded PC steel strand,Unbonded PC steel strand and Epoxy coated PC strand

2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm

3.Raw Material:SWRH 82B High carbon steel

4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.

5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm

6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet

Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
