high-quality prestressed steel wire and steel strand Manufacturer & Supplier

Home > Products > Prestressed Concrete Steel Strand >

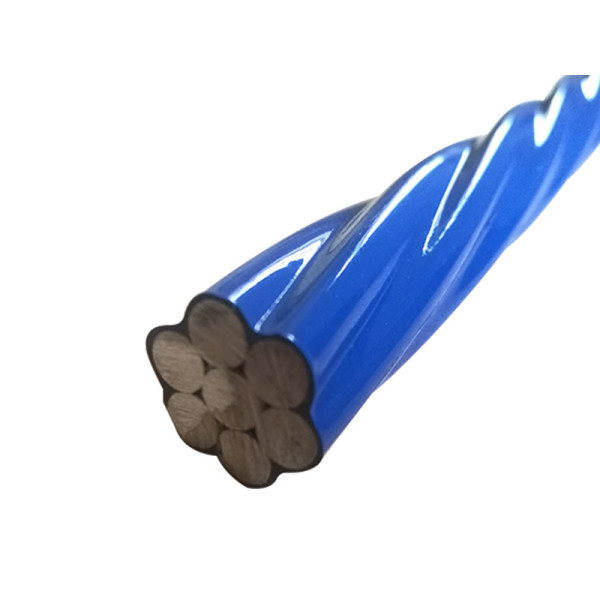

7 wires Epoxy coated PC strand manufacturer dia 15.24mm

7 wires Epoxy coated PC strand manufacturer dia 15.24mm

7 wires Epoxy coated PC strand manufacturer dia 15.24mm
7 wires Epoxy coated PC strand manufacturer dia 15.24mm7 wires Epoxy coated PC strand manufacturer dia 15.24mm7 wires Epoxy coated PC strand manufacturer dia 15.24mm7 wires Epoxy coated PC strand manufacturer dia 15.24mm7 wires Epoxy coated PC strand manufacturer dia 15.24mm
CategoriesPrestressed Concrete Steel Strand
AlbumView larger image
BrandChunpeng pc wire and pc strand
Model9.53mm, 12.7mm, 15.24mm
TypeDrawn Wire
ApplicationConstruction
Alloy Or NotNon-Alloy
Model Number1*7,1*3
Brand NameEXA
Place of OriginTianjin, China
Tolerance±1%, +0.40mm/-0.20mm
Grade82B, 270(1860Mpa)
CertificationISO9001:2000
PackingCoil packing
Download DOC
Update Time2021-04-20
Detail Information
7 wires Epoxy coated PC strand manufacturer from China
1.Types: Epoxy coated PC strand
2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm
3.Raw Material:SWRH 82B High carbon steel
4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.
5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm
6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet.
Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
pdf document download
  • ASTM A416 Chunpeng 7 wire prestressed concrete strand

    ASTM A416 Chunpeng 7 wire prestressed concrete strand

    2021-03-05
  • PE coated PC strand

    PE coated PC strand

    2021-03-05
  • pc strand

    pc strand

    2021-03-05
  • PC WIRE

    PC WIRE

    2021-03-05
Learn more from our FAQ
  • Can I visit you?

    Answer:

    Sure, If you would like to visit our factory, please contact us to make an appointment.

    More details
  • How can I know how my order is being done?

    Answer:

    We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

    More details
  • Can you give warranty of your products?

    Answer:

    3.Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we provided emails with details including pictures or short video to you to confirm the quality before the shipment.

    More details
  • 4.How long of your delivery time?

    Answer:

    Generally need 5-10 days if it is in stock. Or need 15-20 days if it is out of stock.

    More details
