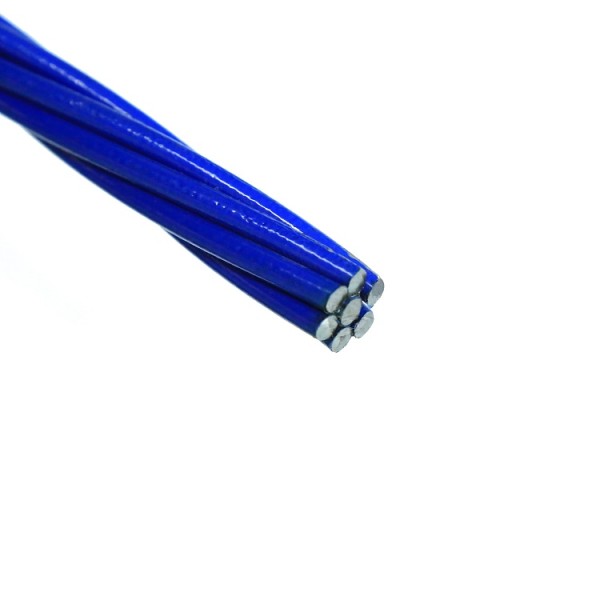

pc strand 7 wires 12.7mm prestressed concrete steel strand

pc strand 7 wires 12.7mm prestressed concrete steel strand

pc strand 7 wires 12.7mm prestressed concrete steel strand
pc strand 7 wires 12.7mm prestressed concrete steel strandpc strand 7 wires 12.7mm prestressed concrete steel strandpc strand 7 wires 12.7mm prestressed concrete steel strandpc strand 7 wires 12.7mm prestressed concrete steel strandpc strand 7 wires 12.7mm prestressed concrete steel strand
CategoriesPrestressed Concrete Steel Strand
BrandChunpeng pc wire and pc strand
Model9.53mm, 12.7mm, 15.24mm
ApplicationConstruction
StandardASTMA416/EN10138
PackingCoil packing
Brand NameEXA
Tolerance±1%, +0.40mm/-0.20mm
Tensile strength1370-2160MPA
Steel GradeSWRH 82B wire rod
Download DOC
Update Time2021-06-22
Detail Information
astm a416 grade 270 12.7mm low relaxation prestressed steel strands
pc strand 7 wires 12.7mm prestressed concrete steel strand
1.Types: Bonded PC steel strand,Unbonded PC steel strand and Epoxy coated PC strand
2.Size: 9.3mm/9.53mm/12.5mm/12.7mm/15.24mm/15.7mm/21.8mm/23.5mm/28.6mm
3.Raw Material:SWRH 82B High carbon steel
4.Main executive standards: GB/T5224, ASTMA416, BS5896, JIS3536, ISO6934, EN10138 or as per the technology agreement decided by both sides after negotiation.
5.Product packaging size: Inner diameter: 760mm Outer diameter: 1400mm Width of coil: 760mm
6.Packaging steps: Coils are wrapped by 8 steel strips → wrapped by waterproof cloth → wrapped by 8 steel strips (6+2) → added with wood pallet

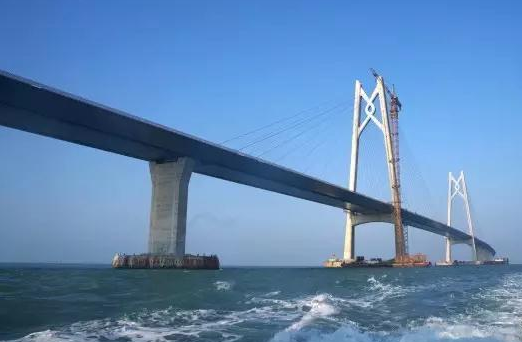

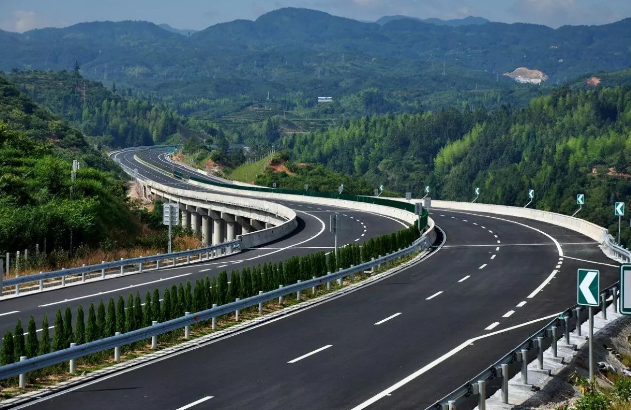

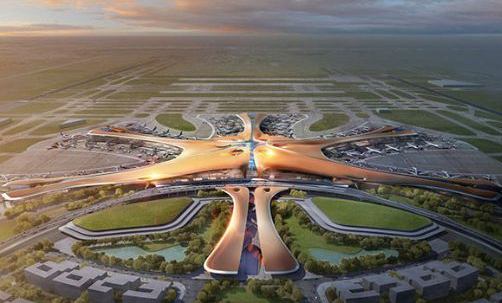

Application:PC Strands are mainly used in prestressed concrete structure reinforcement, such as large-span bridges on railway and highway, overhead crane beam, rock-soil anchoring project, multi-storey industrial buildings, stadiums, coal mines, etc.
pdf document download
  • ASTM A416 Chunpeng 7 wire prestressed concrete strand

    ASTM A416 Chunpeng 7 wire prestressed concrete strand

    2021-03-05
  • PE coated PC strand

    PE coated PC strand

    2021-03-05
  • pc strand

    pc strand

    2021-03-05
  • PC WIRE

    PC WIRE

    2021-03-05
